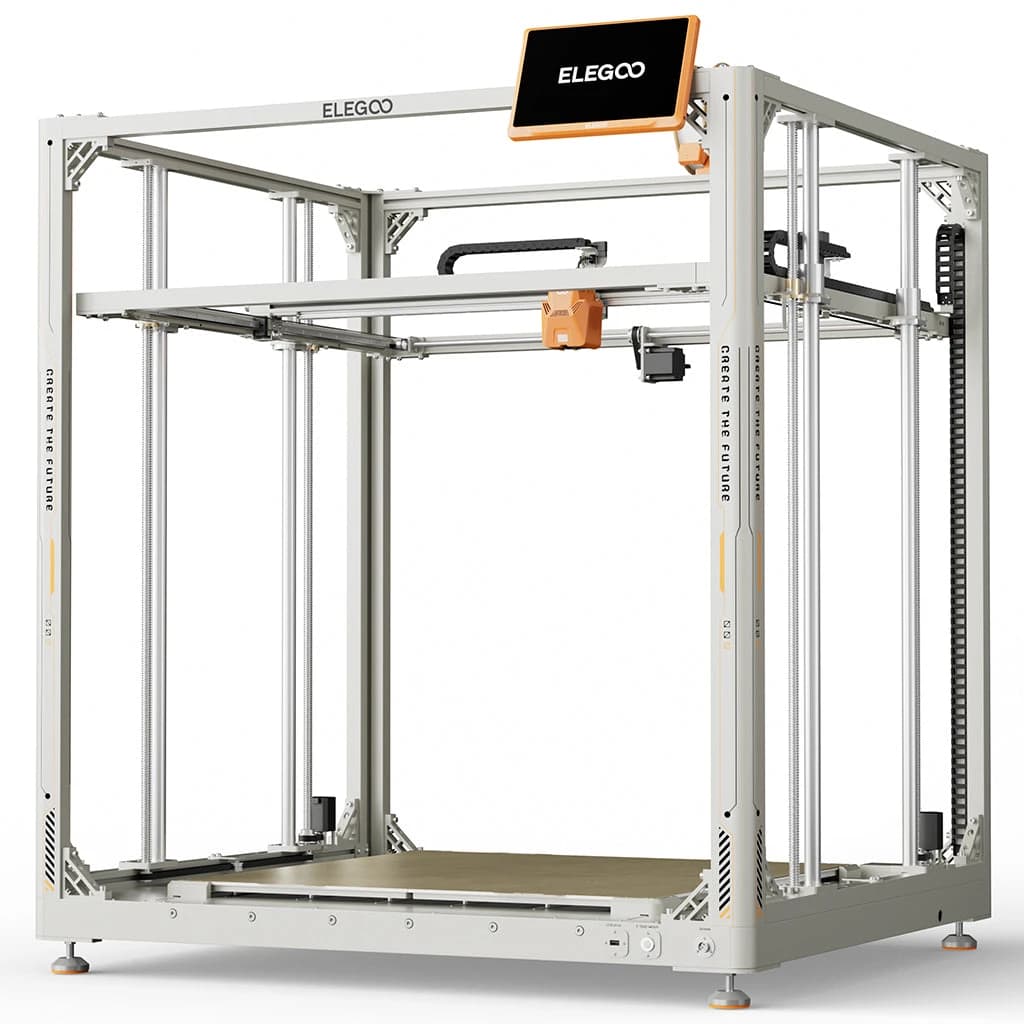

ELEGOO OrangeStorm Giga: is an 800 mm build volume right for you?

Most desktop 3D printers cap out around 250 mm per side. That is fine for figurines and brackets, but it forces you to slice larger objects into pieces, print them and glue them back together. The ELEGOO OrangeStorm Giga takes the opposite approach: an 800 × 800 × 1000 mm build volume that ELEGOO describes as industrial-grade. This guide covers what that size buys you, and what it asks of your space, power and patience.

Key features

Size. The build volume is 800 × 800 × 1000 mm. The machine itself measures 1,224 × 1,164 × 1,425 mm and weighs 104 kg net (145 kg gross), according to ELEGOO's specifications.

Four-zone heated bed. The bed is made of four independent 410 × 410 mm PEI magnetic plates (820 × 820 mm in total) with a maximum temperature of 100 °C. ELEGOO says all four zones reach 100 °C in 17 minutes at 25 °C ambient. The plate holding the model can be detected and heated on its own, or controlled manually, to save energy.

Speed and processing. A 64-bit, 1.5 GHz quad-core processor (RK3328) drives a maximum tool-head speed of 300 mm/s, with 150 mm/s recommended, and acceleration up to 5,000 mm/s².

Extruder. A brass nozzle reaching 300 °C, a dual-gear direct extruder, a titanium heat break and a 60 W ceramic heater. A 0.6 mm nozzle is included, with 0.4, 0.8 and 1.0 mm nozzles optional. ELEGOO also lists PID auto-calibration and a built-in acceleration sensor.

Multi-nozzle option. Up to three additional printheads can be added to the X axis for four nozzles at once. This lets you print four copies of one model, or four colors of the same model. ELEGOO notes the printheads are sold separately.

Leveling and monitoring. One-click auto leveling uses a non-contact sensor to collect 100 points (10 × 10). Filament detection, power loss recovery and automatic pause on filament break are included. A 10.1-inch detachable capacitive touch screen supports eight languages.

Build touches. Linear guides on X and Y, caterpillar cable tracks, an upgraded Z-axis rod, belt-tension knobs and a spool holder for spools up to 5 kg.

Who it's for

• Prop, costume and cosplay makers who print large single pieces instead of assembling dozens of small ones.
• Architectural and scale-model builders who want big sections in one print.
• Small studios and workshops with floor space, a dedicated outlet and a need for production-style output.
• Teams who would otherwise print many copies, since the four-nozzle option can multiply output of identical parts.

Things to know before buying

1. Power. ELEGOO lists a 1,530 W maximum with a single head, plus 100 W for each additional printhead. Confirm your outlet and circuit can handle it.
2. Space. Allow for the 1,224 × 1,164 × 1,425 mm footprint and room for the moving parts: ELEGOO gives a maximum activity size of 1,224 × 1,520 × 1,570 mm.
3. Materials. The specification table lists PLA, PETG and TPU as compatible filaments, even though the nozzle can reach 300 °C.
4. Large prints take time. Print time scales with volume. A bigger machine does not make a bigger object finish faster.
5. Shipping and handling. ELEGOO lists the package as separate parts (a base with the XY axis components, and two Z-axis components), each with a footprint of 1,350 × 1,215 mm. Plan the delivery route and who will help you lift it.
6. Prices and stock change. Check the store for current details.

Is there a smaller option?

For most households, yes. The Neptune 4 Pro offers a 225 × 225 × 265 mm volume with Klipper speed. For an enclosed, color-capable alternative, see the Centauri Carbon 2 Combo.

Reading the claims with a cool head

A bigger build volume does not automatically mean better results. Large prints stress everything: bed flatness, cooling, filament supply and time. ELEGOO lists a 300 mm/s maximum speed with 150 mm/s recommended, so a very large part can still take a long time even on a fast machine. The practical question is not whether the Giga can print big, but whether you will print big often enough to justify the space, power and handling it needs. If you only need an oversized part now and then, splitting a model across a smaller printer, or using a print service, may be more sensible.

Terms explained

• Build volume. The maximum width, depth and height of an object the printer can make in one piece. Here it is 800 × 800 × 1000 mm.
• Multi-nozzle printing. Several print heads working side by side. With extra heads fitted, one job can produce multiple copies of the same part at the same time.
• Nozzle diameter. A larger nozzle (such as the included 0.6 mm) deposits more plastic per pass, which speeds up big prints at the cost of fine detail. Smaller nozzles are optional.
• Power loss recovery. After an outage, the printer can resume the job instead of starting over, which matters on prints that take a long time.
• Caterpillar cable tracks. Flexible guides that keep moving cables from wearing out or snagging on the print.
